| Application: | construction | Type: | gripper |
|---|---|---|---|
| Applicable range: | 2.5-32mm | Rated load: | 10-30KN |
| Weight: | 0.8-2.5kg | Used: | tighten wire rope |
| แสงสูง: | hydraulic compression tool,hydraulic lug crimping tool |
||

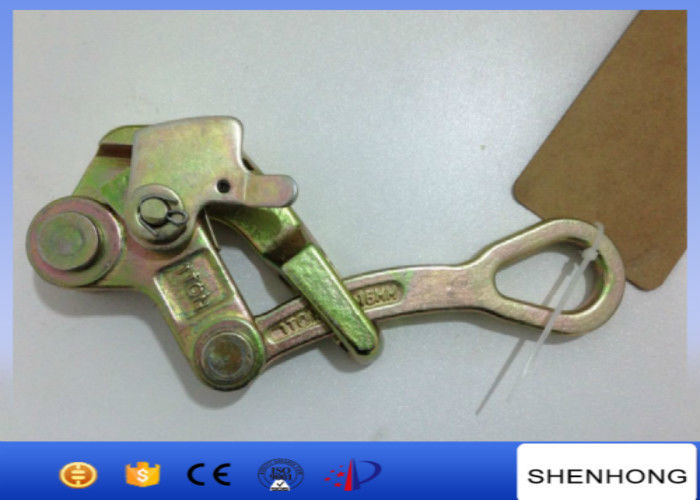

1-3Ton Come along clamp wire rope grip, universal gripper for 2.5-32mm
Application
It is used of high-quality alloy steel forging forming, jaws are made by a special heat treatment.The jaws are partially equipped with a safety device to prevent jumpers.It is used for steel wire, ACSR or insulated wire.It is universal.
Features
Product is forged of alloy steel with heat treatment. The rack has strong anti-tension with high occlusion strength. It is not easy to slide and deformation.
Note:
1. S-1000C apply to steel rope and steel stranded wire;
2. S-2000CL apply to copper wire, ACSR or insulated wire;
3. S-3000CL apply to copper wire, ACSR or insulated wire.
Technical data of 1-3Ton Come along clamp wire rope grip, universal gripper for 2.5-32mm
| Model | Rated load(KN) | Applicable Range(mm) | Weight(kg) |
| S-1000C | 10 | 2.5-16 | 0.8 |
| S-2000CL | 20 | 4-22 | 1.3 |
| S-3000CL | 30 | 16-32 | 2.5 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
