| Product Name: | 3 Ton Diesel Cable Pulling Winch With 200-300M Wire Rope for Stringing ABC Cable | Type: | Diesel cable winch |
|---|---|---|---|
| Item: | 3 Ton wire rope winch | Load capacity: | 3T |
| Cable drum: | winding 200-300m wire rope,10mm | Engine: | diesel engine |
| Power: | Water cooled,4HP | Weight: | 160kg |
| แสงสูง: | cable pulling winch,กว้านสลิง |
||

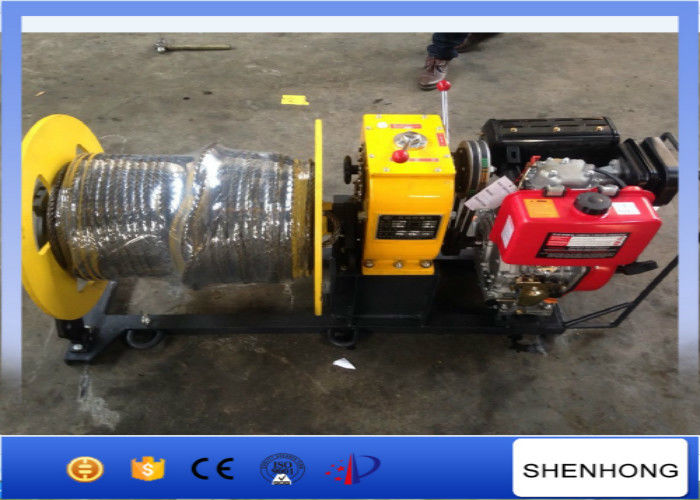

3 Ton Cable Pulling Winch Stringing ABC Cable With 200-300 M Wire Rope
Application
It is used for tower erection,pole setting,stringingwire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Test Before Delivery
Data Sheet
| Model | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJQ-1 | HONDA Petrol engine 4 HP | (Slow) | 10.0 | 0.8 | 36 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJD-1 | Electric motor 2.2kw | (Slow) | 10.0 | 0.8 | 46 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJQ-3 |
HONDA Petrol engine(6HP)or Homemade Petrol engine |
(Slow) | 5.0 | 3.0 | 82 |
| (Fast) | 9.0 | 1.8 | |||
| Reverse | 4.0 | No Lifting! | |||
| JJC-3 | Diesel engine(4HP) | (Slow) | 6.0 | 3.0 | 108 |
| (Fast) | 11.0 | 1.8 | |||
| Reverse | 4.5 | No Lifting! | |||
| JJQ-5 |
YAMAHA Petrol engine (9HP) or Homemade Gasoline engine |
(Slow) | 5.0 | 5.0 | 145 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJC-5 | Diesel engine(6.6HP) | (Slow) | 5.0 | 5.0 | 180 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJQ-8 |
HONDA Petrol engine or homemade petrol engine 13HP |
(Slow) | 3.0 | 8.0 | 168 |
| (Fast) | 5.0 | 3.0 | |||
| Reverse | 3.0 | No Lifting! | |||
| JJC-8 | Diesel engine 10.5HP | (Slow) | 4.0 | 8.0 | 230 |
| (Fast) | 7.5 | 3.0 | |||
| Reverse | 3.7 | No Lifting! |
Different Types of Winches
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
